Energy monitoring portal GridVis® Cloud

Energy monitoring made easy

Quick and easy access to the energy monitoring portal

No matter whether verifications need to be provided, electricity savings are required or the CO2 balance must be calculated, the GridVis® Cloud helps to accomplish these tasks. As a software service, it offers an energy monitoring tool that can be integrated into your daily work routine with very little effort.Use the Cloud Connector to automatically upload measurement data to the Cloud, and then access these data anytime, anywhere on the dashboard. The start page provides a quick overview, and standardized graphical presentations and charts ensure uncomplicated evaluation.Information such as rate agreements and emissions can be integrated for subsequent automatic evaluation.

Core functions

Visualization

Recognize savings potentials and weak points using data visualization

Evaluation

Check and evaluate energy consumption and extreme values which have occurred

Overview

Interactive dashboards for a quick and comprehensive overview

Comparison

Comparisons of energy consumption over time periods, locations and consumption media

Setup

Convenient device integration and easy setup via the Cloud Connector

System architecture

System functions

Web-based access

With standard browser on PC/ laptop
Display optimized for tablets
Access via Internet without VPN

Availability (24-hour operation)

Software-as-a-Service as a web application
Measurement data storage on European servers

User management

User management via Janitza ID

Alarm management

Monitoring of device communication

Supported media

Electricity
Gas
Water

Key performance indicators & logic

Measurement points (hierarchical)
Automated summation (consumption)

Automation

Automatic readout of energy consumption data
Time synchronization via the application (alternative for NTP)

Sending emails

Email service in the GridVis Cloud
Send exports and reports by e-mail

Software-based recording of measured values

Online recorder for measured value recording
Janitza measurement devices without measured value memory
Third party products (Modbus TCP/RTU)

Visualization

Dashboards

Predefined dashboards (display filtered to one measurement point)

List Function

Hierarchy (project structure with levels)
Device overview
Search and filter function

Energy and measured value analysis

Graph function on the web
Aggregation function
Comparison periods

Connectivity

Data import

Manual data entry

External devices

Integrate third-party devices via Modbus

Article numbers

Licensing

The Cloud can be licensed in different sizes, so it remains scalable and you only pay for the items you really need.

Item packages

Your item packages determine how many items are available to you in the GridVis® Cloud. You need to consider how many items – users and measurement devices – you need for your project and then select an appropriate item package. The packages can be combined and supplemented later on as desired. That means the GridVis® Cloud can grow along with your requirements.

5 Items

10 Items

25 Items

0 Items

What are items?

Items are virtual units used to determine the size of the required GridVis® Cloud. An item represents a measurement device integrated or created in the cloud, or a created user, i.e. persons who are given access to the Cloud.

Calculation example

This is how the required items are calculated

Integrated measurement devices	7
Manually created measurement devices	2
Water meters (via Modbus)	2
Users via Janitza ID	3
Total items	14

Item packages required	10 + 5 = 15
Items still available	1

Extend the period of use

Extension

If the period of use expires, the GridVis® Cloud can no longer be used.
So, extend your period of use in time by 1 or 3 years.

1 Year

3 Year

Highlights

Gain insight into our highlights and what makes the GridVis® Cloud so special.

Costs and CO2 emissions

Easily store contracts and conversion factors
Automatic conversion when displaying the data
Show costs incurred and CO2 emissions
Cost development in charts for all media
Conversion to a uniform consumption basis (if possible)

User friendly operation

Drag & drop principle
Build and map structures easily
Automatic readout of connected measurement devices
Intuitive management of offline measurement devices
Central, automatically generated overview page
A tile with the current daily consumption for each medium

Automated page and data preparation

Filtered display depending on the selection of the viewing point
Media-related display as well as the option to show and hide individual media
Standard calculation of the sum of consumptions in subcategories
Storage and display of the 15-minute consumption values
Distinction between generated and consumed energy
Presentation of generated energy in a chart

Analysis

Flexible and detailed analysis with one click
Not just a simple summary but the complete history
"Current" consumption in the last 15-minute measuring interval
Numerical consumption data
Indication of measurement gaps
Consumption and costs in a chart for the selected period as well as the possibility to switch to the cost view
Quick, clear comparison with the previous period in a bar chart
Individual time instant selection and fast time shift

Accessories

The Cloud Connector is the crucial link between hardware and software and enables simple and automated commissioning.

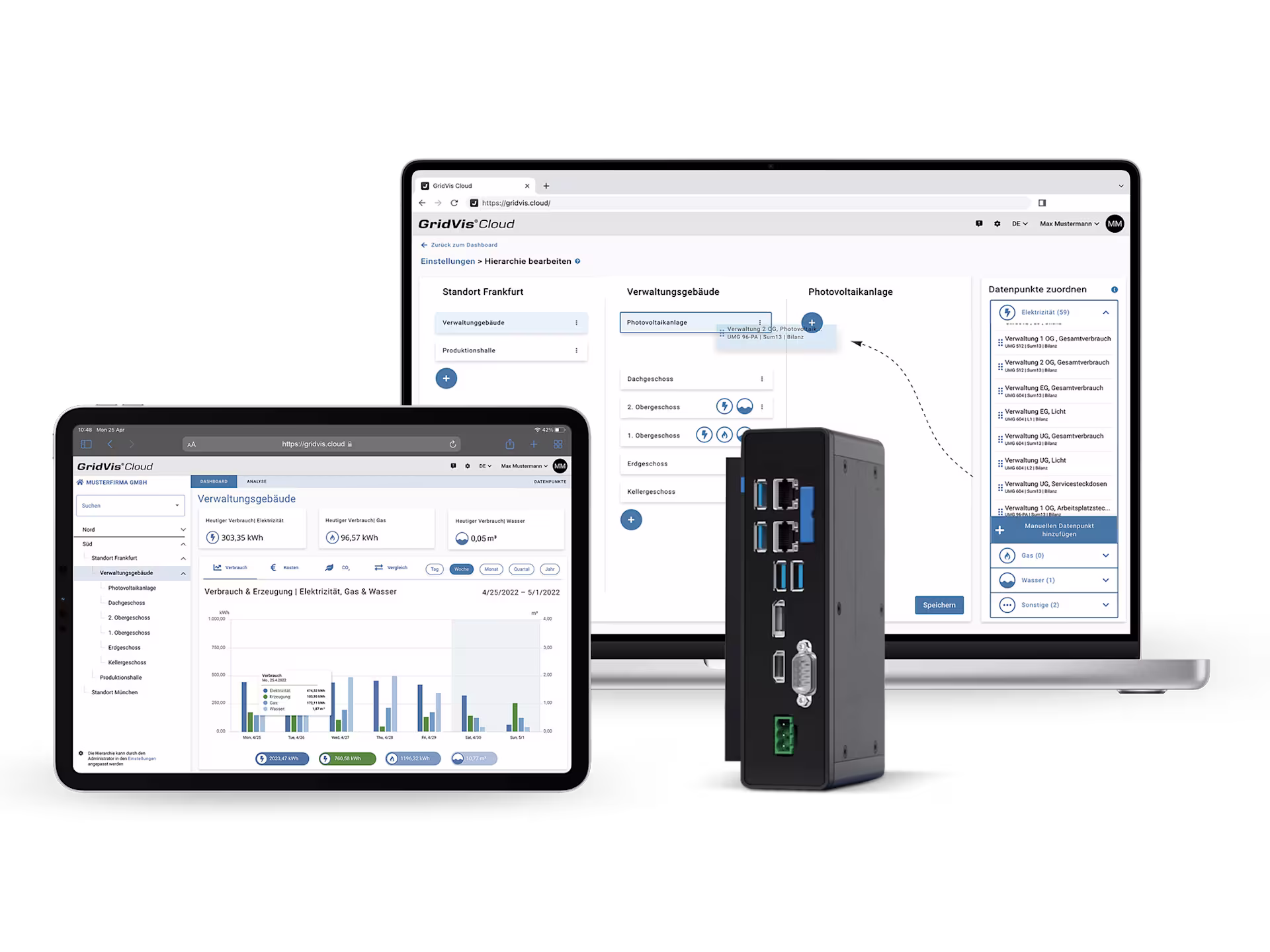

The Cloud Connector

The Cloud Connector is the interface between your measurement devices and the GridVis® Cloud Portal. It ensures that on-site data are packaged and securely transferred to the Cloud, so you can access your information anytime, anywhere.Installation is quick and easy thanks to our presets. The Cloud Connector connects to the local network completely automatically and the Janitza Ethernet devices are also detected automatically.Connecting to the Cloud requires a one-time login to the Cloud via the Connector's web front end. After that, the connected devices and their status can be queried, and additional measurement devices can be integrated manually. The energy readings are then automatically transmitted to the Cloud cyclically, allowing them to be retrieved from there as needed.
