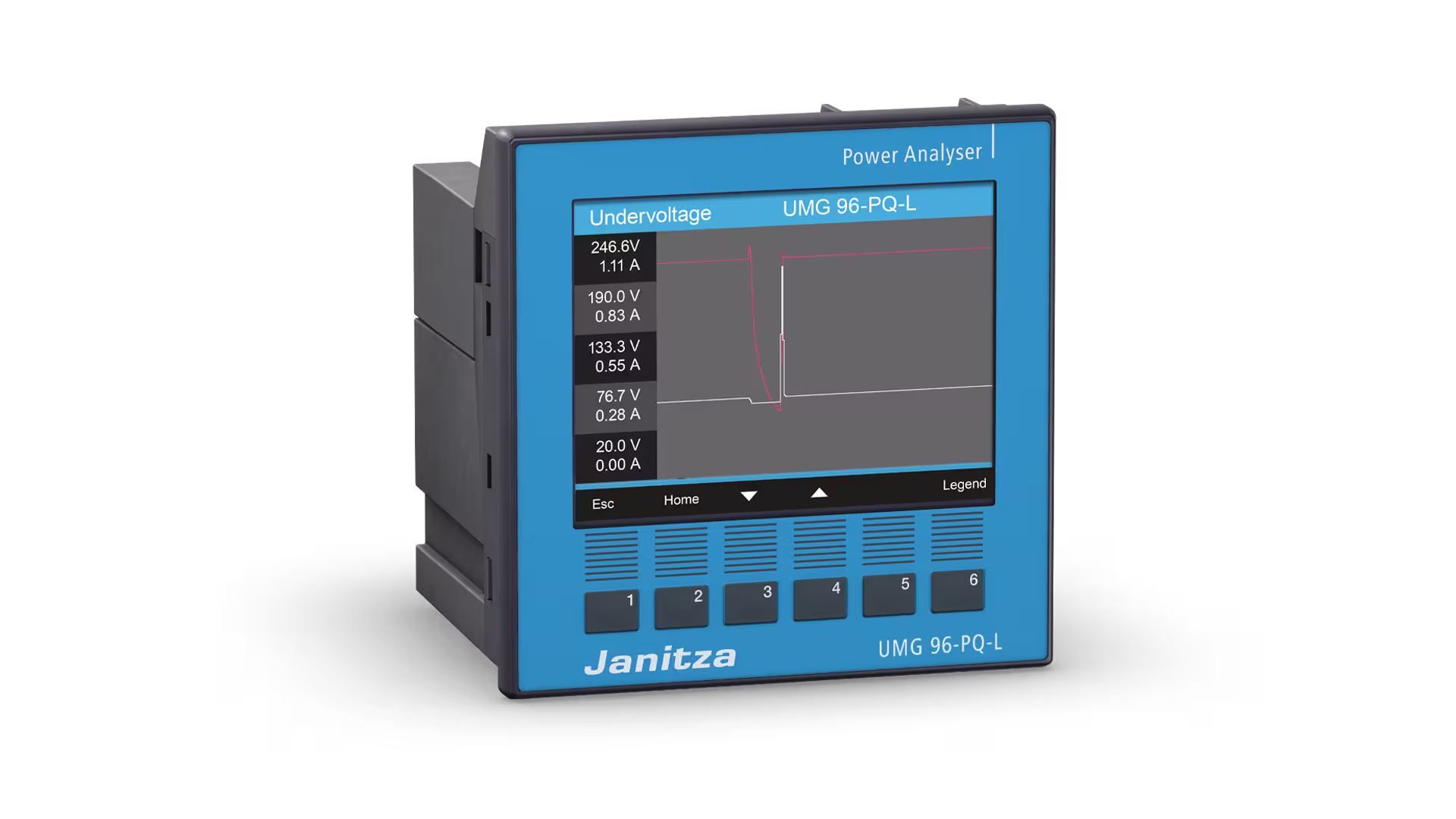

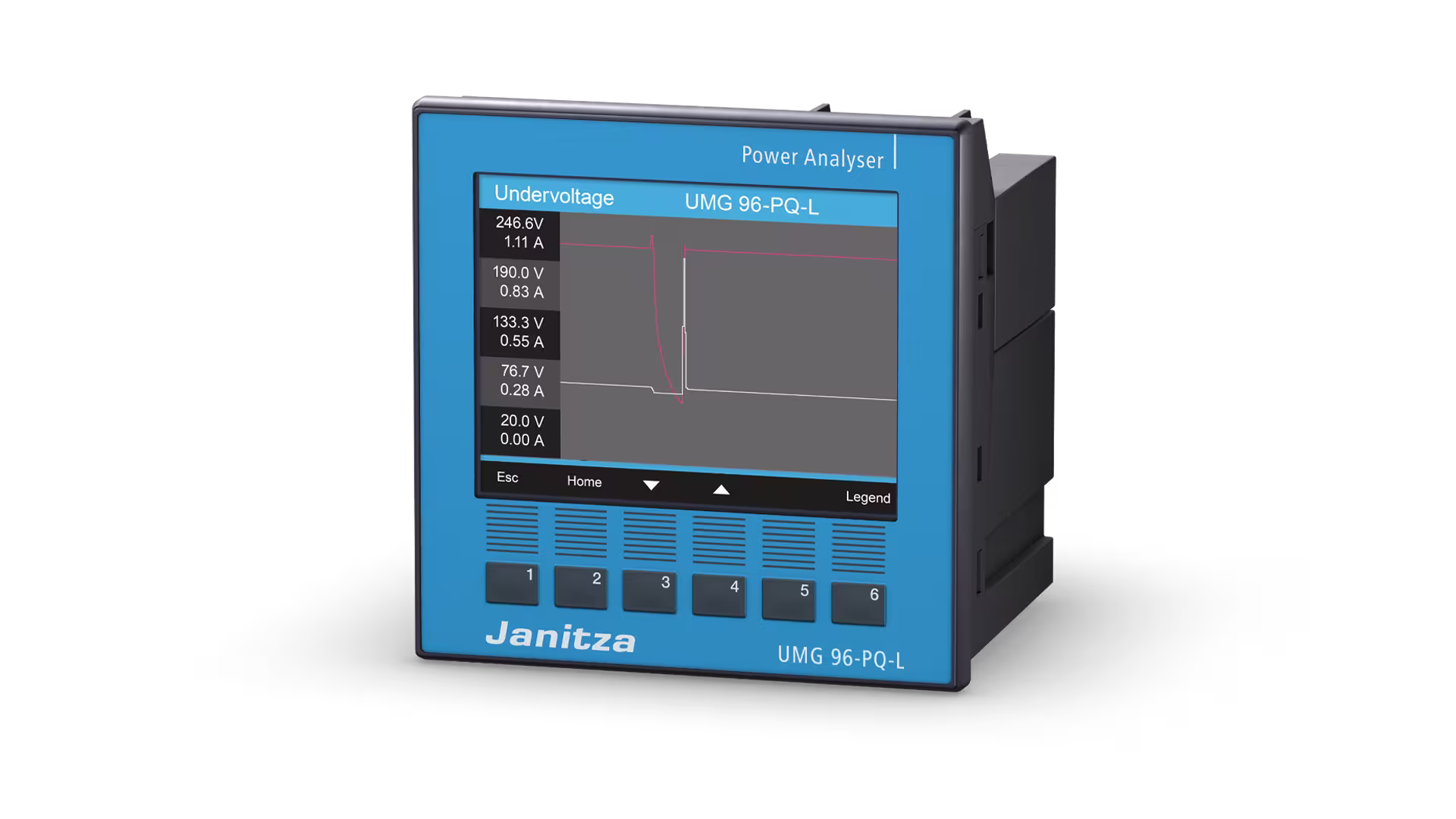

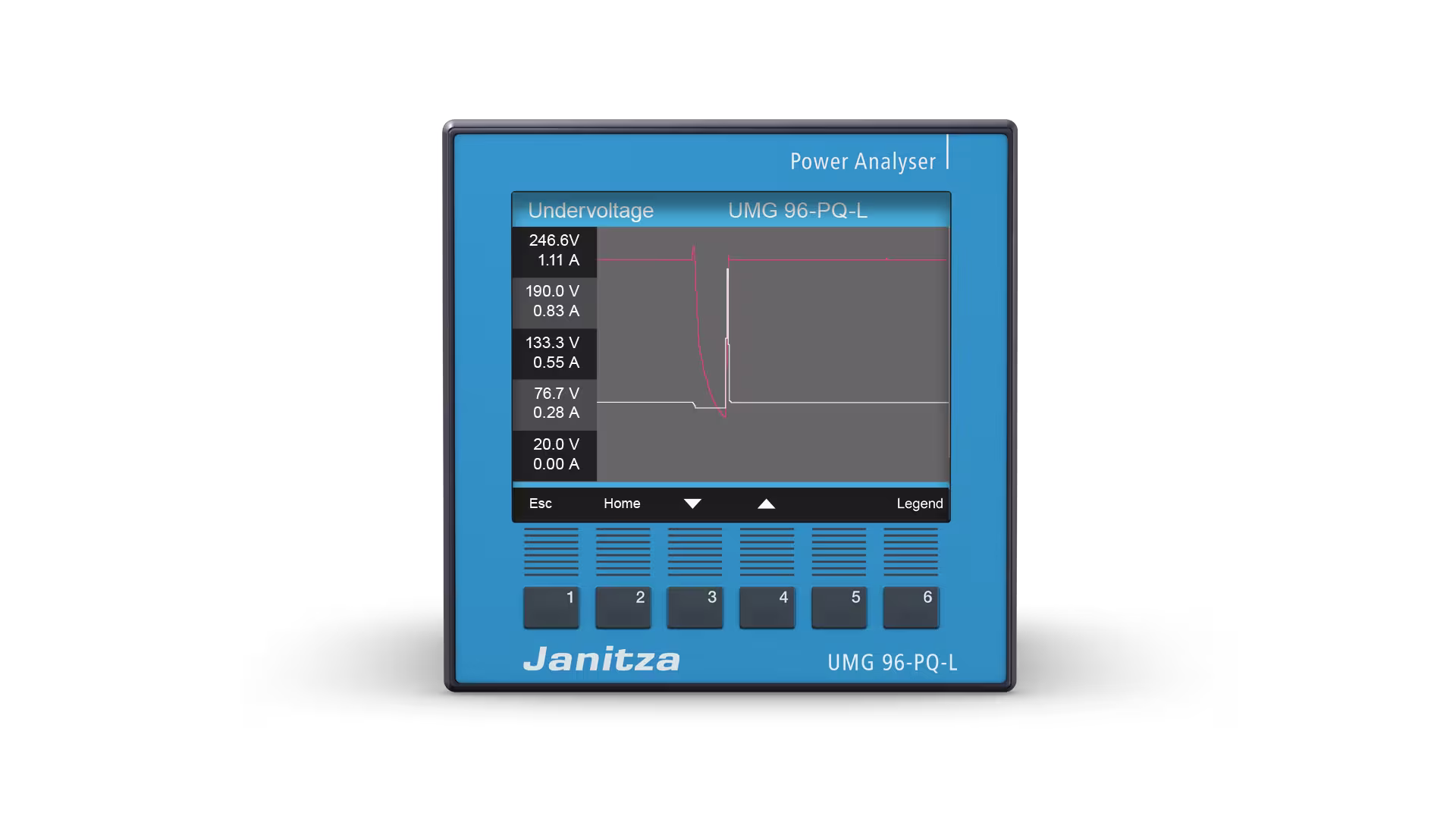

UMG 96-PQ-L offers practical power quality analysis functions and is characterized by its innovative memory structuring that allows for long data storage.
Modular
Future-proof thanks to retrofittable modules and firmware packages
Power quality
Threshold monitoring and measure-ment up to the 65th harmonic
Operating convenience
Clear presentation of all relevant measured values on the display
Full-wave events directly on the display
Whether power quality analysis, residual current monitoring, or temperature monitoring, the UMG 96-PQ-L offers the right functions for every application. With the UMG 96-PQ-L, it is now possible to cost-effectively ensure complete power quality transparency at every level and thus avoid system failures.
Full-wave events can be measured and both shown as well as analyzed directly on the display. In addition, the modular network analyzer offers a large memory, which, thanks to a special data compression method, ensures several years’ worth of storage. Memory partitioning preserves the long storage time for current, power and work even in combination with high-resolution power quality measurement.
All values can be conveniently displayed and graphically represented on the color graphic display. What’s more, the UMG 96-PQ-L-L offers plug-in modules for functional enhancements and 50 comparators that can be configured individually or via predefined comparator profiles.
The class S versions of UMG 96-PQ-L offer additional functions such as the detection of flickers or interharmonics. This enables the requirements of EN 50160 and IEEE519 to be met. Subsequent activation to class S is also possible.
Add modules via plug & Play
Expansion Module 96-RCM-E
Current transformer and accessories
